Auto Feed Lead Free Automated Soldering Equipment RF 350XL Hot Air

Ask Lasest Price
Brand Name :	UA
Model Number :	RF-350XL
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	25 units per month
Delivery Time :	5-30 days

Add to Cart

Product Details
Company Profile

Auto Feed Lead Free Automated Soldering Equipment RF 350XL Hot Air

Auto Feed Lead Free Automated Soldering Equipment RF 350XL Hot Air

Full Automatic Lead Free Wave Soldering Machine RF-350XL Hot Air

Basic date of wave solder RF-350XL

Model	RF-350XL
Options available	N2
	Top IR preheating
	400/450 max PCB width,
	Central support for big PCB
Power supply	3P/AC 380V
Power supply	3P/AC 220V
Flux feeding	Auto feed
Finger type	V, L or customized
Conveyor width adjust	Electric control
Conveyor width (mm)	Max 350 or customized
Preheater	Cast aluminum plate + hot air
Solder pot capacity (kg)	Approx. 400
Machine Dimension (mm)	450014001700
Weight (kg)	1920
Control	PC+PLC
Preheating zone length (mm)	1800
Solder pot movement	Up/down, in/out all-electric control
Solder pot material	Titanium alloy
Flux spray	Step motor control
Cooling type	Forced air cooling

Features of wave solder RF-350XL

1. Wave Soldering Machine Pneumatic components: Japan SMC pneumatic components and other import brands,ensuring gas supply accurate and steady.
2. Spray control: computer control or manually adjust switch.
3. Cleaning device: automatic cleaning, modular design, easy maintenance.
4. Temperature Protection:ETA using third-party over-temperature protection, multiple protection layers to ensure safe operation.
5. Wave Soldering Machine comply with CE, CCC, UL and other standards and specifications.
6. Automatic board connection device, smooth and stabe.
7. A special aluminum alloy guide rail, high strength and hardness to ensure no deformation.
8. Rodless cylinder or stepper motor drive spray head, round-trip injection, spray area is automatically adjusted with PCB width and speed.
9. 1800mm long four period of preheating. Infrared independent PID temperature control, heating uniform, safe and stable.
10. 4mm SUS316 stainless stell furance, new furance design, beautiful shape and easy to clean.

Infomation about wave solder RF-350XL

* Fluxing
Flux in the wave soldering process has a primary and a secondary objective. The primary objective is to clean the components that are to be soldered, principally any oxide layers that may have formed.[3] There are two types of flux, corrosive and noncorrosive. Noncorrosive flux requires precleaning and is used when low acidity is required. Corrosive flux is quick and requires little precleaning, but has a higher acidity.

* Preheating
Preheating helps to accelerate the soldering process and to prevent thermal shock.

* Cleaning
Some types of flux, called "no-clean" fluxes, do not require cleaning; their residues are benign after the soldering process Typically no-clean fluxes are especially sensitive to process conditions, which may make them undesirable in some applications.Other kinds of flux, however, require a cleaning stage, in which the PCB is washed with solvents and/or deionized water to remove flux residue.

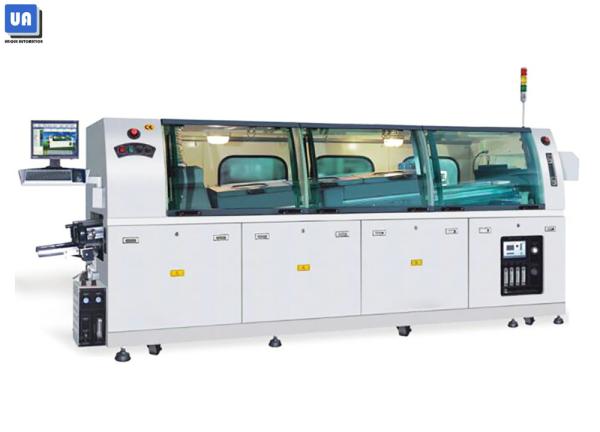

Pictures of wave solder RF-350XL
