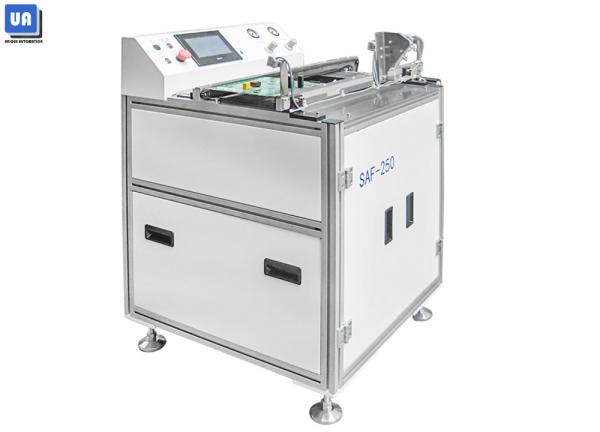

Lead Free SAF 250 Selective Soldering Equipment For SMT Assembly Line

SAF-250 Lead Free Selective Sprayer Machine for SMT Assembly Line

Features of Selective Soldering Machine
1) Flux can be sprayed arbitrarily according to the size of the PCB board area to be sprayed---Selective
2) Can be arbitrarily positioned at any position on the PCB board to spray flux - -Positionability
3) Do not restrict the position and direction to spray flux-one-flexibility
4) The x_Y area coordinate position parameter is designed to be millimeters to achieve the required spraying flux position---Accuracy
5) Computer interface operation, select the area according to the carrier picture to carry out the flux spraying--Simplicity
6) Required spray Reduced flux area---Environmental protection and energy saving
7) More flux can be sprayed for the location --- pertinence
8) Existing external flux sprayer equipment can be used for internal modification and use-fishing.
9) Selective spot spray and full spray mode switch---Compatibility
10) Automatic switching between single board spot spraying and mixed board spot spraying-Convenience
Specification of Selective Sprayer Machine SAF-250

System of Selective Soldering Machine

Control System
The hardware is controlled by the original Omron high-speed motion PLC+7-inch touch screen; the software is designed and produced by senior experts from Omron.
Stable and reliable, simple and convenient to operate, get rid of the shortcomings of computer control viruses, crashes, and energy consumption.

exercise system
The hardware adopts HIWIN ball type linear high-speed guide rail, which is stable and reliable in operation, corrosion-resistant, long service life, and convenient for maintenance and repair; the motor adopts Panasonic AS servo control, which has high operating accuracy and sensitive response.

Spraying device
The nozzle movement adopts the traditional single-axis back and forth movement, and the needle valve switch of the nozzle is controlled by PLC to assist the welding area.

Flux selectivity
Coating, what has changed is a control method of spraying.
The nozzle adopts the original Japanese Lumina nozzle, and the liquid control air pressure and spray = pressure are independently controlled, which makes it easier to achieve the ideal spraying effect, and can quickly control the outflow of the spray liquid at the nozzle outlet, avoiding the waste of flux and the phenomenon of backflow air.
