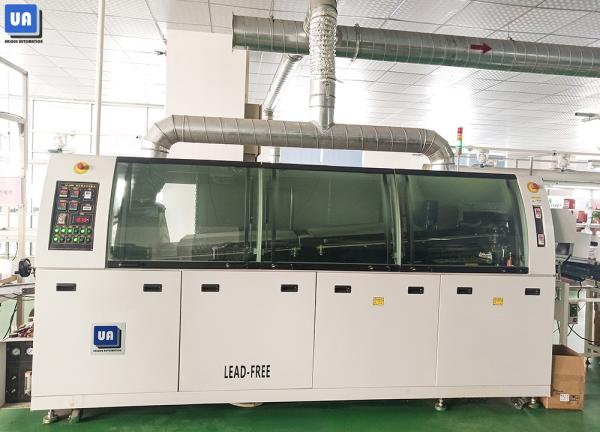

RF 400A IR Lead Free Wave Solder Machine For SMT Welding Line

Lead Free IR Wave Solder RF-400A Wave Welding Machine for SMT Line

The Solder Joint Information of Wave Soldering Machine
Wave soldering machine solder joint formation: When the PCB enters the front end of the wave surface, the substrate and the pins are heated, and before leaving the wave, the entire PCB is immersed in the solder, that is, bridged by the solder, but at the moment it leaves the end of the wave , A small amount of solder adheres to the pad due to the wetting force, and due to surface tension, a small state of shrinkage with the lead as the center appears. At this time, the wetting force between the solder and the pad is greater than the two pads The cohesion of the solder between. Therefore, a full, round solder joint will be formed, and the excess solder leaving the wave tail will fall back into the tin bath due to gravity.

Specifications of wave solder machine RF-450B

Picture display



What we should concern at the operation progress of wave solder ?
1.The product should be wave soldered and inspected (after all soldering parameters reach the set value)
Place the printed circuit board gently on the conveyor belt (or fixture), the machine will automatically spray rib flux, preheat, wave solder and cool; the printed circuit board is connected at the wave solder outlet; according to factory inspection standards.

2.Adjust the welding parameters according to the PCB welding results

3.Carry out continuous soldering production, connect the printed circuit board at the exit of the wave soldering, put it into the anti-static turnover box after inspection, and send the repair board for subsequent processing; during the continuous soldering process, each printed board should be checked for soldering defects Serious printed boards should be re-soldered immediately. If there are still defects after welding, the cause should be found out, and the process parameters should be adjusted before continuing welding.

Unique Automation (referred to as "UA") is a High-speed developing enterprise of High Precision SMT Equipment manufacturer, which specializes in automation equipment for electronics industry.

Basic Information :

* Established Time : in 2010 with headquarter in Shenzhen.

* Facility Area : more than 5,000 square meters.

* Specializing in : wave soldering machine, reflow oven, SMT automatic vision paste printer,

  SMT laser marking machine, conveyors, PCB/PCBA loader & unloader, THT production lines,

   fixtures/pallets, SMT consumables, etc.

* Our aim : “Quality First, Customer Priority”.

Our mian products :

Wave soldering machine, reflow oven, SMT automatic vision paste printer,

SMT laser marking machine, conveyors, PCB/PCBA loader & unloader, THT production lines,

fixtures/pallets, SMT consumables, etc.

In addition to ensuring product quality, we also attach importance to the production environment.

For SMT factory setup, we can do for you:
We provide full SMT solution for you
We provide core technology with our equipments
We provide the most professional tech service
We have wealthy experience on SMT factory setup
We can solve any question about SMT

Our Advantages：

Your inquiry about our products and price will be replied within 24 hours

Well-trained and experienced staffs to answer all your enquires in fluent English

Whole SMT&DIP line solutions provide

Best products and price to offer

Shortest time to delivery the products

Strict QC before shipping the products

OEM & ODM services offered

We will try our best to provide high quality products for u.

We are always here with u !
