2500W SMT Industrial Laser Marking Equipment SMT Production Line

Ask Lasest Price
Brand Name :	UA
Model Number :	G510
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	20 units per month
Delivery Time :	15 days

Add to Cart

Product Details
Company Profile

2500W SMT Industrial Laser Marking Equipment SMT Production Line

2500W SMT Industrial Laser Marking Equipment SMT Production Line

SMT Production Line G510 PCB Laser Marking Machine Industrial SMT industrial Machine

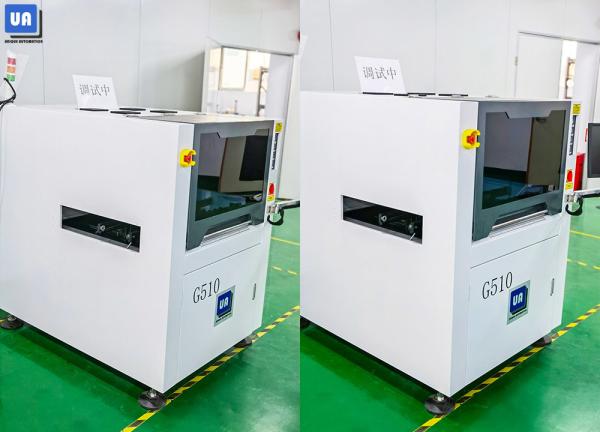

PCB Laser Marking Machine G510

Specification
1	Model	G510
2	PCB size	Min 50mm50mm Max 510mm460mm
3	Repeat Positioning Accuracy	±0.03mm
4	Marking Speed	6000mm/s
5	One-Dimensional Code	CODE39,CODE25,CODE93,CODE128,EAN-13,ISBN
6	Applicable Product	White ink, green ink, blue ink, black ink
7	Code size	Min:1.0mm*1.0mm
8	File format supported	DXF,PLT,EXCE,TXT
9	The machine size	1050x1470x1450mm
10	Character Height	0.1 - 0.4mm
11	Automatic positioning function	Support automatic photography
12	Transport Direction	LEFT TO RIGHT RIGHT TO LEFT
13	PCB Clamping	Able to clamp automatically and customize various clamping and fixture as needed
14	PCB Thickness	0.5mm-10mm
15	Two-Dimensional Code	Datamatrix,QR Code, micro QR Code, PDF417, Code 49, Code 16K
16	Laser Type	CO2/Fiber/Green/UV
17	Character Type	True Type,JSF,SHX,DMF
18	Power Supply	220V/50Hz 2500W
19	Air Required	0.5-0.6Mpa
Options
1	Loader and Unloader
2	Panel turnover machine
3	Dust extraction system
4	Laser code up and down simultaneously
5	Barcode scanner
6	MAS System or MES System

Basic principles of PCB Laser Marking Machine
Laser marking is to use a laser beam to make permanent marks on the surface of various materials.
The effect of marking is to expose the deep material through the evaporation of the surface material,
or to "carve" traces through the chemical and physical changes of the surface material caused by light
energy, or to burn off part of the material through light energy to show the required etching Patterns, text.
Marking picture

Assembly workshop
