High Effciency Lead Free Hot Air Reflow Oven Rectifying Plate Galvanized Sheet

Ask Lasest Price
Brand Name :	UA
Model Number :	MA-1000D
Certification :	CE
Price :	USD 15000-25000
Payment Terms :	T/T
Supply Ability :	20-30 units per month
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

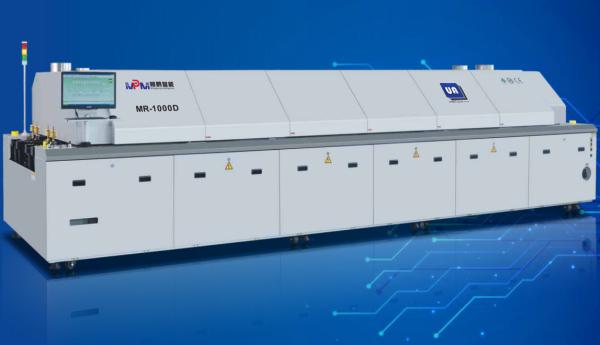

High Effciency Lead Free Hot Air Reflow Oven Rectifying Plate Galvanized Sheet

MA-1000D Lead Free Hot Air Reflow Ovens:

Features Of MA-1000D Lead Free Hot Air Reflow Ovens:

● 95% materials of reflow oven can be recycled;
● Reiforced main hanging bracket to guarantee there is no deforming and board jamming occurred;
● Reiforced main hanging bracket .to guarantee there is no deforming and board jamming ccurred;
● The dual-rails conveyor is able to improve the production off ciency as well as save power & cost;
● 15% heat tranferring efficieny was improved to deal with the load free process with more complicated and larger products；
● New cooling contiguration to make the fitered or reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation;
● Use the full protection of the sealed oven design to prevent N2 and O2 from losing effectively.so the lowest concentration of N2 and O2 can be reached to 150 ppm; When concentration of oxygen is 300- -00ppm, N2 consumption is only 20- 2m*/H.

Machine Specification Of MA-1000D Lead Free Hot Air Reflow Ovens:

Machine Specification
Model	MA-1000D	Control	Industrial computer
Heating zones qty.	Top 10, bottom 10	Cooling zones qty.	Top 2
Heating zone length	3892mm	Rectifying plate	Galvanized Sheet
Weight	Apprx.:3050kg	Dimension	600516801530mm
Exhaust capacity	10m³/min×2	Color	Grey
Control system
Electricity supply	3P 380V/220V 50/60HZ	Temp. control range	Room temp.～300℃
Total power	83KW	Temp. control accuracy	±1℃(static state)
Start power	38KW	Temp. control method	PID +SSR drive
Consumption power	12KW	PCB temperature deviation	±1.5℃
Speed control	Inverter adjust	Data save	All profiles can be saved
Warm up time	Apprx.35minute	Abnormal alarm	High, low temp. alarm
Conveying system
Rail structure	2 sectional rails	Rail fixed method	Front fix
Chain	Stuck-free type	Conveying height	900±20mm
PCB Max. width	50-450mm	Conveying method	Rail+ mesh+ chain
Component height	Top30mm/bottom25mm	Conveying speed	300-2000mm
Conveying direction	Left to right	Lubrication	Automatic from sw
Width adjust	Electronic control	Conveyor motor	Taiwan motor

Picture Showing:

Independent top & bottom heating modules, inde pendent hot air circulation, all heating zones are controlled by PLC and PID. With super long heating area, makes sure the heat efficiency is high and even, △T is larger.

Package:

Shipping :

1. By air. International Express like Federal Express, DHL, UPS, TNT, etc.

2. By sea. Suitable for the transportation of large items, carrying a lot of goods and cheap.

3. By truck. Fast transportation and low cost.

4. Other method as you customized.
