VCTA-S820L Automatic Optical Inspection Machine Online 2D AOI For SMT Line

Ask Lasest Price
Brand Name :	UA
Model Number :	VCTA-S820L
Certification :	CE
Price :	USD 22000-45000 / unit
Payment Terms :	T/T
Supply Ability :	50 units per week
Delivery Time :	1 weeks

Add to Cart

Product Details
Company Profile

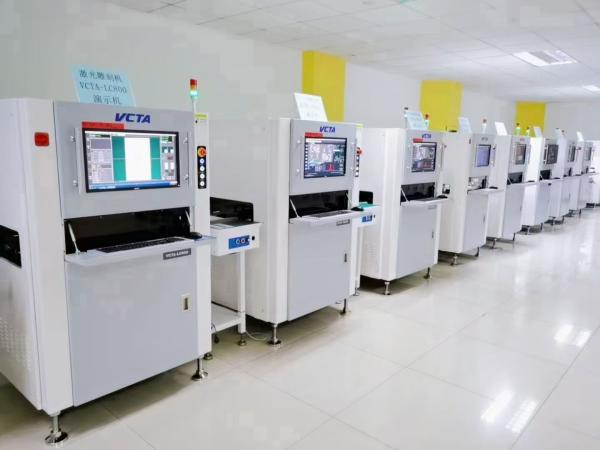

VCTA-S820L Automatic Optical Inspection Machine Online 2D AOI For SMT Line

VCTA-S820L On-Line AOI

The machine that Inspect the soldering defects basis on optical thory

Features:

Vector analysis algorithm, integrated variety of software algorithms to achieve the best inspection capability

The entire PCB match capability can detect extra parts at any location. Germany imported 5.0mp industry cameras.

The new light source design, effectively eliminate the NG parts.

Offline programming and debugging.

Import control system to ensure high-precision equipment operation. The equipment can communicate directly with the NG BUFFER device and other equipment through the communication protocol.

Central server mode that gathers information from all the test machines to facilitate the integrated management of production,

Multiple machines need only one operator.

The vector image algorithms include logic operation, distance of luminance boundary, chip tracing, OCR/OCV, luminance/color template matching, color distance, color extraction(RGB & HSV), value-range of luminance, offset of luminance, the minimum variation span of luminance, etc...More than 30 kinds of the most advanced algorithms.

Machine Specifications

CATEGORY	ITEM	SPECIFICATION
Recognition System	Inspection	The vector image algorithms include logic operation, distance of luminance boundary, chip tracing, OCR/OCV, luminance/color template matching, color distance, color extraction (RGB & HSV), value-range of luminance, offset of luminance, the minimum variation span of luminance, etc... More than 30 kinds of the most advanced algorithms.
	Camera	Import high-speed 500 M Pixel Color camera, 20um (25/15um for optical)
	Lens	High-resolution telecentric Lens
	Lamp-house	Rings RGB LED lamp-house
	FOV	Max:40×40mm (20um)
	0201 Chip	<7.6ms
	Per-image Time	220～450ms
	Paste Printing Defects	Missing, overflow, insufficient, pasting open, stain
	Component Defects	Missing, shift, skewed, tombstone, billboard, overturned, reversed polarity, wrong, damaged
	Solder Defects	Overflow, insufficient, short solder, stain
	Wave Soldering Inspect	Overflow, insufficient, short, Excess Solder, solder void
	Inspection Items	0201&0.4mmpitch (20um) 01005& 0.3mm pitch(15um)
Mechanism System	PCB Conveyor	Left to right (Optional, right to left),PCB fixing: bottom-up, Automatic PCB loading and unloading, Adjustable clearance, Conforming SMEMA standard. Conveyor clearance: 900±20mm
	PCB Size	50×70mm-510×460mm (Can customize according to clients' requirement)
	PCB Thickness	0.5mm – 5.0mm
	PCB Warp Tolerance	<2mm
	Component Clearance	TOP≤30mm, BOT≤30mm(Can customize according to clients' requirement)
	Driver	AC servo system,camera moves in the directions of X/Y
	Orientation	<10um
	Moving Speed	Standard:500mm/s,Max:800mm/s
Soft System	Operation System	Microsoft Windows 7 X64
	Operation	Graphic programming, Chinese, English
	Programming	Support offline programming
	Computer	Industrial Computer, Intel I7 CPU, Memory:16G, Hard disk: 2TB
	Display	22 inch TFT
Network	Network	Can communicate with NG terminals
Network	Communication port	SMEMA, RS232,RJ45
Others	Machine Dimensions(LWH	105×110×156cm (Excluding Signal Light)
	Weight	~750kg
	Power Supply	AC220V, 10%, single phase 50/60HZ, power consumption 1200W
	Air Supply	0.5MPA.70cm3/min
	Working Environment	Temperature10-40℃, humidity 30-80% RH

With a high color reproduction, collocation a high-resolution telecentric Lens, high NG identification, provide high-definition image output for the AOI.

AlI major components are used internationally renowned brands. In the premise of ensuring the stability and accuracy of the movement equipment, with high service life and low failure rate.

Flexible/Multi-function AOI

It can be placed at several quality controlling points in SMT Line to check 2D paste printing quality, inspect component defects before reflow soldering, inspect PCBA quality after reflip soldering and DIP wave soldering

Smart Double Conveyor AOI

The same series multi-configuration apply for different requests
The professional character recognition function (OCR/OCV),further enhance the testing precision
