| Machine Specification |

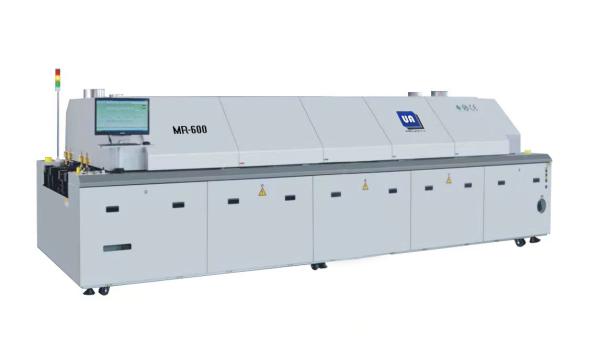

| Model | MR-600 | Control | Industrial computer |
| Heating zones qty. | Top 8, bottom 8 | Cooling zones qty. | Top 3, bottom 3 |
| Heating zone length | 2295mm | Rectifying plate | Thick copper plate |
| Weight | Approx:2200kg | Dimension | 4705*1430*1490mm |
| Exhaust capacity | 11㎡/min×2 | Color | Grey |
| Control system |
| Electricity supply | 3P 380V/220V 50/60HZ | Temp. control range | Room temp.～300℃ |
| Total power | 55KW | Temp. control accuracy | ±1℃(static state) |
| Start power | 32KW | Temp. control method | Closed loop, PID +SSR |
| Consumption power | 9KW | PCB temperature deviation | ±1.5℃ |
| Speed control | 3 Inverters adjust | Data save | All profiles can be saved |
| Warm up time | Apprx.30minute | Abnormal alarm | High, low temp. alarm |
| Conveying system |
| Rail structure | 2 segments rails | Rail fixed method | Front fix |
| Chain structure | Stainless steel, stuck-free type | Conveying height | 900±20mm |
| PCB Max. width | 50-460mm | Conveying method | Chain+ mesh+ rail |
| Component height | Top/bottom 30mm | Conveying speed | 300-2000mm |
| Conveying direction | Left to right | Lubrication | Automatic from sw |
| Width adjust | Electronic control | Conveyor motor | Panasonic |
| Max. temp. difference between preheat zone and soldering zone: 90 ℃ |
| Max. temp. difference between preheat zone: 50 ℃ |
| Max. temp. difference between solder zone: 50 ℃ |
| Cooling system |
| Cooling method | Forced air cooling |
| Cooling zone | 3 cooling zones, length is 1140mm, cool down the PCB quickly and
reduce the heat impact when the PCB exit from the oven. |
| Cooling flux manage | With separate flux management in the cooling zone, make it clean
all the time, easy for maintenance. |
| Heating features |
| Heating zones | Top 6,bottom 6(2295mm)can meet the need of the peak lead-free
technique. |
| Exit temperature | After cool down by forced air, PCB temp. is ≤70℃ at the exit. |
| Warm up time | From the normal temp. to set temp, approximate 30 minutes. |
| Warm up sequence | Warm up from two side, save the power and time |
| Profile transfer time | ＜15min |
| Heating zone temp. control accuracy | ±1℃ |
| PCB temp. deviation | ±1℃ |
| Empty to full load heat balance respond time | ≤20 s |
| Heating zones separately close function | Every heating zone can be closed separately on computer. When the
bottom heating zones are closed, the PCB two sides temp. different
reaches max.(PCB of different material, thickness, size, the temp.
difference value is different.) |
| Heating parts |
| Hot air motor | Import anti high temperature motor, RPM:3200rpm. Adopts inverter to
control, can adjust the speed of motor from 0 to 3200, stepless.
Motor warranty is 5 years. |
| Heater | The heater is specially made, with high efficiency and sensitivity,
warranty time is 5 years. |
| Air lane structure | High efficient air lane, provides abundant air |
| Exhaust system | Forced exhaust device, ensure no escape of flux. |
| Transmission parts |
| Anti torque rail | High strength and hardened rail, is very durable and wear
resistant. |
| Rail parallelism | ±0.3mm |
| Chain stretch out length | Standard: 5mm, the chain is anti-stuck type, solve the soldering
problem of small PCB |
| C/V speed set min.unit range | 0.01m/min, 0~2m/min |
| C/V speed deviation range | Computer close loop, within ±2% |
| Chain tension device | Automatic adjust by spring, avoid the chain stuck due to the
heating. |
| Conveying motor | Panasonic adjustable motor |
| Chain lubrication | The lubrication is controlled by PC, lubrication cycle and time can
be set(there are three modes: fine, standard, economical. There is
also manual lubrication in software) |
| Rail width-adjusting | Independent motorized adjusting |
| Mesh | 500mm stainless steel mesh,runs synchronized with chain |
| Machine structure |
| Frame | The frame is well soldered, firm and durable. |
| Door | Dismountable structure, provide wide space for maintenance. |
| Hood open method | Double electric cylinder to open the hood, with self-lock function,
safe and reliable. |
| Cover open method | Self-made holder, easy to clean up |
|
Electrical parts and control performance |
| Control system | Industrial PC | PLC+ Modular＋PID, stable and reliable, with high repeat accuracy |
| Operation interface | Windows 10 with Chinese& English shift easily. |
| Machine& operator safety | With creepage protector |
| Electric part | All electric parts are imported, very durable, ensure the machine
runs stably. |
| Working mode | Three working mode: operation, edition and presentation, with
on-line editing function |
| Real time monitor | Generate the operation record daily, if there happen some problems,
the responsible operator will be found easily. |
| Temperature profile | Generate the profile for each zone daily, user can review and
analyze. This function is not for PCB profile testing, just for
inspecting when some problem happens in a certain zone. |
| Production database | Generate production statement for all kinds of PCB and statistics,
printable. |
| Alarm list | The system saves all alarm information for user to review the alarm
item and time. |
| Alarm system | The system enters cool down mode when the alarm is strict. |
| Profile test | With temp. profile testing function, can analyze according to the
profile. |
| Abnormal alarm | 1.PCB runs abnormally 2. Operation abnormal 3. Temperature abnormal
4.Conveyor speed abnormal 5.Hot air devices abnormal. |
| Flux recycle device | Standard configured. When use nitrogen, as it is closed
recirculation, if the flux fog cannot be spread, it will pollute
the PCB. |
| After-sales services |
| Warranty | 2 years for the whole machine, 5 years for motors, heaters. |
| Out of warranty | Charge only purchase price for parts. |
| Service respond time | 2 hours |
| Flux recycle device | Flux Management system is standard feature. |
| Other features |
| SMEMA | Available for both upstream and downstream |
| UPS | Available. To protect control section and for conveyor in case of
main input power failure |
| Timer | Can set the power on/off time to start the machine, PC, software
and load the recipe, to save time. |
