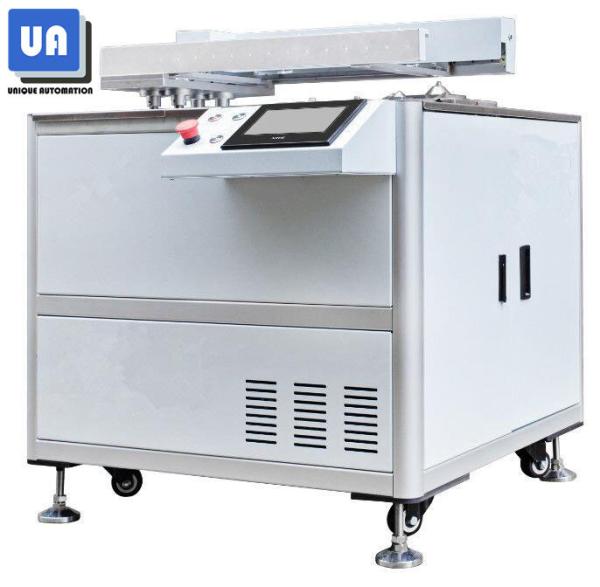

6KW XYZ Axis PCB Selective Soldering Machine 900mm height

Ask Lasest Price
Brand Name :	UA
Model Number :	FS-250
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	15 units per month
Delivery Time :	5-20 days
Certification :	ISO9001, SGS, CTI, ROHS

Add to Cart

Product Details
Company Profile

6KW XYZ Axis PCB Selective Soldering Machine 900mm height

Selective Soldering Machine Selective Spray & Soldering All-In-One Machine

FS-250

Due to increasing product changes in electronics production, it is necessary to use selective soldering, instead of traditional wave solder machine.

FS250 Selective spray and soldering system,new technology and modular design match the highest demands on flexibility, for a revolutionary level of flexibility and highest soldering quality.

		Parameter
Size		880L1040W960H (mm)
Machine frame and cover		Aluminium extruded sections frame + Door
Operating height		900±20mm
Weight		Approx.250KG
Power supply		220V 50/60HZ
Total power		6KW
PCB parameter
PCB size		Max:350(L)*250(W)(mm)
Top component height		Max180mm
Bottom component height		Max30mm
PCB Weight		Max5Kg
PCB Process Edge		＞3mm
Selective spray system
Spray movement mode		PCB movement in XYZ axis
Spray flux volume		130ml
Spray flux add mode		Manual
Spray nozzle type		Needle
Spray cycle time		1 Sec/ soldered dot
Spray movement precision		0.05mm
Spray flow control		pressure gage + flow valve
Selective Soldering System
Welding movement mode		PCB movement in XYZ axis
Movement mode		Step motor + linear rail
Solder feeding mode		Manual( Option: auto)
Solder capacity		16KG
Solder melting time		20min
Solder power		3KW
Solder nozzle size		Standard D8mm, other sizes is option
Solder cycle time		5 Sec/ soldered dot
Temperature control mode		PID+SSR
Temperature setting range		Max400OC
Temperature accuracy		±2OC
Wave height		Max 5mm
Welding precision		0.1mm
Solder dross		0.2Kg/8H(Not N2 protection)；0.01Kg/8H( N2 protection)
N2 protection system
N2 protection mode	Nozzle and solder pot
N2 consumption	2M3/h
N2 flow control	Digital flow control
Exhaust system
Top cover exhaust	Customer supply
Exhaust quantity	1 PCS
Exhaust volume	About 5m³/h
Control system
Control mode	Touch screen + PLC
PCB Process parameter	Setting, save , open in the touch screen
Buzzer	Prompt sound from the buzzer
Other	PCB counting, message, alarm can be read in the touch screen
Option
Welding real-time monitoring
Sweep gun

Machine Dimension & Drawing
