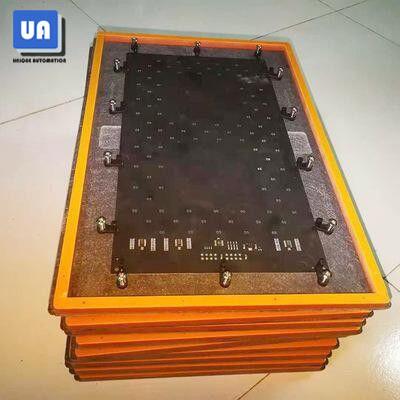

380C Temperature Resistant PCB Pallet Black Grey 18000 Times

Ask Lasest Price
Brand Name :	UA
Model Number :	CUSTOMIZED
Certification :	ISO9001, SGS, CTI, ROHS
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	500 pcs per day
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

380C Temperature Resistant PCB Pallet Black Grey 18000 Times

PCB Pallet 380C Temperature Resistant Wave Solder Carrier For PCB Assembly

Each one of our pallet is custom designed to meet our client's requirements. Just tell us your ideas,our experienced engineers will offer the best solution for you.

Our advantages

- Price: With our own pallet materials and CNC machines, we can provide the most competitive price to our clients.

- Quality: With rich production experience, our pallets have been widely approved by our clients both home and abroad.

The precision can be controled within -/+0.02mm

- Lead time: 3-5 days for samples, 7-10 days for bulk order.

- Professional sales team: Our sales engineer know well about material&machining. You can discuss any engineering issue with us freely.

What are the most important things while using solder pallet fixture?

1. Proper care and proper handling. Fracture damage most often occurs while transferring the unit. To avoid damage to the protective wall, as well as other parts of the solder pallet fixture, it is important to have a dedicated management position.

2. Store the solder pallets in an upright position. Deformations can be happened if the unit is improperly stored.

3. Avoid strong acid and alkali contact. Exposure to strong acids or bases will easily corrode the solder pallets.

4. Avoid using alcohol and alcohol-based cleaning agents. Saponifiers are the recommended cleaning agent.

5. Shockproof transportation. Units can receive shock damage while being transported through the A shockproof cart is recommended.

We can also design pallets as per client's requirement. Below information are necessary for the pallet design.

1. 2D drawing(.dwg or PDF) or 3D drawing(.STEPor .IGS) of wave solder pallets

2. Gerber file of PCB bare board+ Loaded PCB sample(PCB board with electronic components)

Technical Data Sheet
Name	Wave solder pallet
Grade	Anti-static
Density(g/cm3)	1.9
Flexural Strength 3 point support⊥(Mpa)	420
Water Absorption(%)	<0.18
Coefficient of linear Expansion(10－6/k)	12
Thermal Conductivity (w/m0k)	0.25
Maximum Operating Temperature(℃) 10-20seconds	380
Standard Operating Temperature(℃)	300
Life Cycles(Times)	>18000
Surface Resistivity(Ω)	10^6－10^9
Thermal Capacity(J/kgk)	930
Modulus of Elasticity (Mpa)	20000
Chemical Resistance	Excellent
Thickness Available(mm)	3,4,5,6,8,10,12,15,20,25,30
Thickness Tolerance(mm)	±0.1
Parallelism(mm)	±0.1
