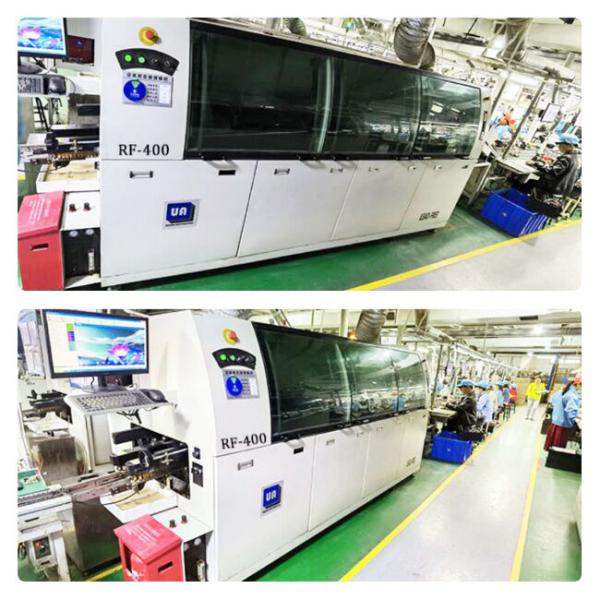

Lead Free Reflow Soldering Machine
Lead free Reflow Soldering Machine Wave Solder for SMT Production
Line
Features
1. Energy-saving, lead-free application, meet with environmental
protection requirement and user friendly designed
2. Automatic power system, inverter control, automatic board
in-load feature.
3. Flux sprayer using transverse Japanese spray nozzle and driving
by stepper motor, spray range is selective,
PLC controlled, accurate and reliable.
4. Flux recovery container drawer design, easy to clean.
5. Conveyor equipped 3 width adjustable screws, the conveyor
transmission is more stable, no PCB falling risk.
6. Timer start up feature for solder pot, solder melted in within
90 minutes.
7. Automatic finger cleaner equipped.
8. With black box memory function, the machine can always store the
SPC data, improve work efficiency.
9. Intelligent monitoring and alarm system ensure the stable
performance and operators' safety.
Specifications
| Mode | RF-400B |
| General |
| Dimension ( L*W*H ) | 4200*1450*1700 |
| Weight | 1700 kg |
| Operating System |
| Control Mode | PLC + Computer |
| Spraying System |
| Transmission Methos | Step Motor |
| Spraying Pressure | 0.25MPa ~ 0.4MPa |
| Flux Flow | Flux Flow Meter |
| Auto Flux Feeding | Optional |
| Exhaust Method | Upper Exhaust |
| Preheating System |
| Preheating System | IR Tube Option: Hot Air Convenction |
| Preheating Length | 1800MM |
| Preheating Temp | Room Temperature ~300C |
| Warm-up Time | Approx. 20/Min |
| Soldering System |
| Solder Pot Type | Motor Drive |
| Wave Height Adjustment | Manual |
| Warm-up Time | Approx. 180min ( Setting at 250C) |
Installation Drawing
Company Profile
Unique Automation (referred to as "UA") is a High-speed developing
enterprise of High Precision
SMT Equipment manufacturer, which specializes in automation
equipment for electronics industry.
Unique Automation (UA) was founded in 2010 with headquarter in
Shenzhen and its manufacturing facilities
of more than 5,000 square meters.
With over 11 years’ experience in design and manufacturing of SMT
equipment, UA is one of the
most professional solution providers in the SMT equipment market.
We specialized in wave soldering machine, reflow oven, SMT
automatic vision paste printer, SMT laser
marking machine, conveyors, PCB/PCBA loader & unloader, THT
production lines, fixtures/pallets, SMT
consumables and etc, and has exported these cost effective and high
quality equipment to more than
30 countries in Europe, America, Middle-east, Southeast Asia, and
Africa. We will spare no effort in providing
SMT equipment to our customers with the aim of “Quality First,
Customer Priority” as we have been
doing for the last 11 years.
Package and Shipping
1. Package
We use the way of internal vacuum packing and outer wooden packing.
2. Shipping
1. By air. International Express like Federal Express, DHL, UPS,
TNT, etc.
( Fast transportation, safe and accurate)
2. By sea. Suitable for the transportation of large items, carrying
a lot of goods and cheap.
3. By truck. Fast transportation and low cost.
4. Other method as you customized.
FAQ
Q1: Are you a trade company or manufacturer ?
We are the manufacturer of high precision SMT Equipment and have
more than 10 years’ experience in this line.
OEM & ODM service are available.
Q2 : What is your payment terms?
T/T, L/C, etc
Q3: What’s your terms of packing ?
We usually adopt this method : internal vacuum packing and outer
wooden packing.
Or according to your requirement.
Q4 : What is your delivery date?
The delivery date is about 20-30 working days after receive the
payment.
Q5:If we come to your factory, you will provide the free training ?
Yes, warmly welcome you to visit our factory and we will arrange
the free training for you.
Q6 : Whether these products have quality assurance ?
We have strict QC and all products have 100% quality tested before
delivery.
`
Q7: Why choose UA ?
Experienced in design and manufacturing of SMT equipment, UA is one
of the most professional
solution providers in the SMT equipment market.
