Lead Free Reflow Soldering Machine

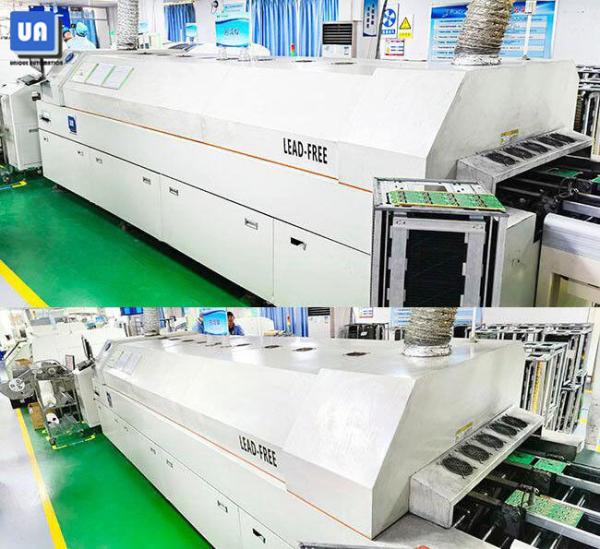

Lead Free Reflow Oven Machine for SMT Production Line RF-600I
Features
1. Even temperature and high heat compensation efficiency,
especially suitable for soldering of BGA CSP components.
2. The patent wind wheel design can ensure wind speed windspeed can
be adjusted by frequency conversion
3. All temperature zone applies coercive independent cycles PID
controls and up & down heating style,
which make the temperature of theoven accurate with a large heat
capacity
4. Quick warm up, it takes less than 20 minutes to heat fromthe
normal temperature to the working temperature
5. The upper cover of the oven is raised by electric handspike,
safe and credible
6. Automatically monitoring and displaying the working condition of
the oven the parameter
of the oven can be modified at any moment
7. The guide rail is made of special aluminum alloy with high
rigidity accuracy and intensity,
with auto chain lubricating system
8. Powerful programming software’s controlling system, it can
detect the online temperature
of PCB and can analysis save and print the profiles
9. SMEMA compatible
Specifications
| Model | RF-600I |
| No. of Heating Zones | Top 6 & Bottom 6 |
| No. of Cooling Zones | 1 |
| Length of Heating Zones | 2600 MM |
| Temp. Setting Range | Rome Temperature ~320C |
| Temperature Control Precision | ± 1C |
| Temperature Deviation on PCB | ± 1.5C |
| Nozzle Plate | Stainless Steel Plate |
| Cooling Method | Air Oven : Forced Air;
Nitrogen Oven : Water Chiller |
| Components Clearance | Top / Bottom Clearance of PCB is 25mm |
| Max. Width of PCB | 50 ~ 400 MM |
| Conveyor Height | 900± 20 MM |
| PCB Conveyor Method | Mesh and Rails |
| Conveyor Direction | Option |
| Convryor Speed | 20-2000MM/min |
| Mesh Width | 450 MM |
| Power Supply | 380V 50HZ / 220V 60HZ |
| Startup Power | Approx. 27KW |
| Normal Operation Power | About 5KW |
| Dimension ( L*W*H ) | 4500*1300*1450 |
| Weight | 1500KG |
CompanyProfile
Unique Automation (referred to as "UA") is a High-speed developing
enterprise of High Precision
SMT Equipment manufacturer, which specializes in automation
equipment for electronics industry.
Unique Automation (UA) was founded in 2010 with headquarter in
Shenzhen and its manufacturing facilities
of more than 5,000 square meters.
With over 11 years’ experience in design and manufacturing of
SMTequipment, UA is one of the
most professional solution providers in the SMT equipment market.
We specialized in wave soldering machine, reflow oven, SMT
automatic vision paste printer, SMT laser
marking machine, conveyors, PCB/PCBA loader & unloader, THT
production lines, fixtures/pallets, SMT
consumables and etc, and has exported these cost effective and high
quality equipment to more than
30 countries in Europe, America, Middle-east, Southeast Asia, and
Africa. We will spare no effort in providing
SMT equipment to our customers with the aim of “Quality First,
Customer Priority” as we have been
doing for the last 11 years.
Package and Shippment
Package : We use the way of internal vacuum packing and outer wooden packing.
Shippment :
1. By air. International Express like Federal Express, DHL, UPS,
TNT, etc.
( Fast transportation, safe and accurate)
2. By sea. Suitable for the transportation of large items, carrying
a lot of goods and cheap.
3. By truck. Fast transportation and low cost.
4. Other method as you customized.
FAQ
Q1: Are you a trade company or manufacturer ?
We are the manufacturer of high precision SMT Equipment and have
more than 10 years’ experience in this line.
OEM & ODM service are available.
Q2 : What is your payment terms?
T/T, L/C, etc
Q3: What’s your terms of packing ?
We usually adopt this method : internal vacuum packing and outer
wooden packing.
Or according to your requirement.
Q4 : What is your delivery date?
The delivery date is about 20-30 working days after receive the
payment.
Q5:If we come to your factory, you will provide the free training ?
Yes, warmly welcome you to visit our factory and we will arrange
the free training for you.
Q6 : Whether these products have quality assurance ?
We have strict QC and all products have 100% quality tested before
delivery.
`
Q7: Why choose UA ?
Experienced in design and manufacturing of SMT equipment, UA is one
of the most professional
solution providers in the SMT equipment market.
