Lead Free Wave Soldering Machine
Wave Solder RF-450A Lead Free Tin Soldering Machine
Specifications
| Model | RF-450A |
| General |
| Power | 380V 50HZ / 220V 60HZ |
| Dimension ( L*W*H ) | 4200*1500*1700 |
| Weight | 1600 kg |
| Operating System |
| Control Mode | PLC + Temp. control meter |
| Spraying System |
| Transmission Method | Air cylinder |
| Spraying Pressure | 0.25MPa ~ 0.4MPa |
| Flux Flow | Flux Flow meter |
| Auto Flux Feeding | Optional |
| Exhaust Method | Upper Exhaust |
| Exhaust Capacity | 25M3/min |
Features
1. Efficient, energy-saving, lead-free, environment-friendly, safe
and brand-new design,
simple operation, convenient maintenance.
2. Automatic power system, frequency converter control, automatic
board input system.
3. Flux sprays system using scanning spray nozzle, Japanese nozzles
and rodless pneumatic
cylinders and PLC control, accurate and reliable.
4. Preheating system uses three independent temperature control so
that ensure the excellent heat
preservation, temperature uniformity, temperature difference no
more than ±2ºC.
5. Titanium solder fingers, high strengthened double v-groove with
tin resistant
6. PID close loop controlled hot air preheaters, preheating system
uses three independent
temperature control so as to ensure the excellent heat
preservation, temperature uniformity,
temperature accuracy in ±2ºC.
7. Preheat passage modular design, environmental protection and
safety, convenient for cleanup.
8. Solder motor adopts imported high frequency conversion motor
with independent control, stable performance.
9. Solder pot's inpeller material is cast iron, never corrode,
solder pot with oxidation jacket, low solder dross

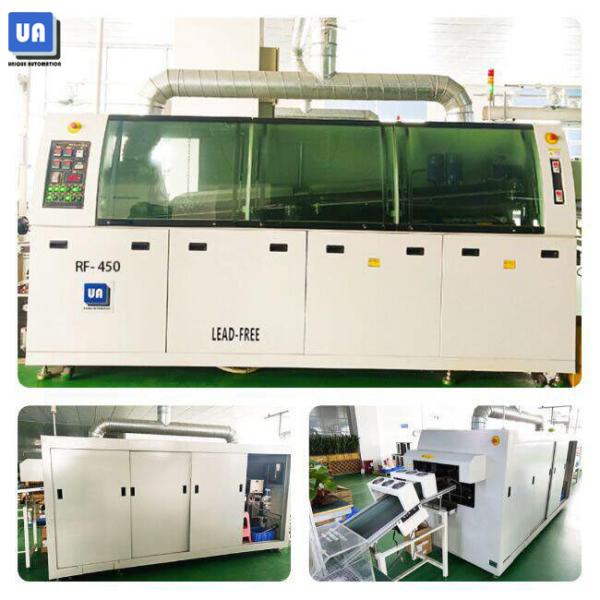

Pictures Showing
Installation Drawing
Company Profile
Unique Automation (referred to as "UA") is a High-speed developing
enterprise of High Precision
SMT Equipment manufacturer, which specializes in automation
equipment for electronics industry.
Unique Automation (UA) was founded in 2010 with headquarter in
Shenzhen and its manufacturing facilities
of more than 5,000 square meters.
With over 11 years’ experience in design and manufacturing of
SMTequipment, UA is one of the
most professional solution providers in the SMT equipment market.
We specialized in wave soldering machine, reflow oven, SMT
automatic vision paste printer, SMT laser
marking machine, conveyors, PCB/PCBA loader & unloader, THT
production lines, fixtures/pallets, SMT
consumables and etc, and has exported these cost effective and high
quality equipment to more than
30 countries in Europe, America, Middle-east, Southeast Asia, and
Africa. We will spare no effort in providing
SMT equipment to our customers with the aim of “Quality First,
Customer Priority” as we have been
doing for the last 11 years.
Package and Shipping
1. Package
We use the way of internal vacuum packing and outer wooden packing.
2. Shipping
1. By air. International Express like Federal Express, DHL, UPS,
TNT, etc.
( Fast transportation, safe and accurate)
2. By sea. Suitable for the transportation of large items, carrying
a lot of goods and cheap.
3. By truck. Fast transportation and low cost.
4. Other method as you customized.
FAQ
Q1: Are you a trade company or manufacturer ?
We are the manufacturer of high precision SMT Equipment and have
more than 10 years’ experience in this line.
OEM & ODM service are available.
Q2 : What is your payment terms?
T/T, L/C, etc
Q3: What’s your terms of packing ?
We usually adopt this method : internal vacuum packing and outer
wooden packing.
Or according to your requirement.
Q4 : What is your delivery date?
The delivery date is about 20-30 working days after receive the
payment.
Q5:If we come to your factory, you will provide the free training ?
Yes, warmly welcome you to visit our factory and we will arrange
the free training for you.
Q6 : Whether these products have quality assurance ?
We have strict QC and all products have 100% quality tested before
delivery.
`
Q7: Why choose UA ?
Experienced in design and manufacturing of SMT equipment, UA is one
of the most professional
solution providers in the SMT equipment market.
